L5207-2-00
Call Today!
|
||
L5207-2-00 Information: |

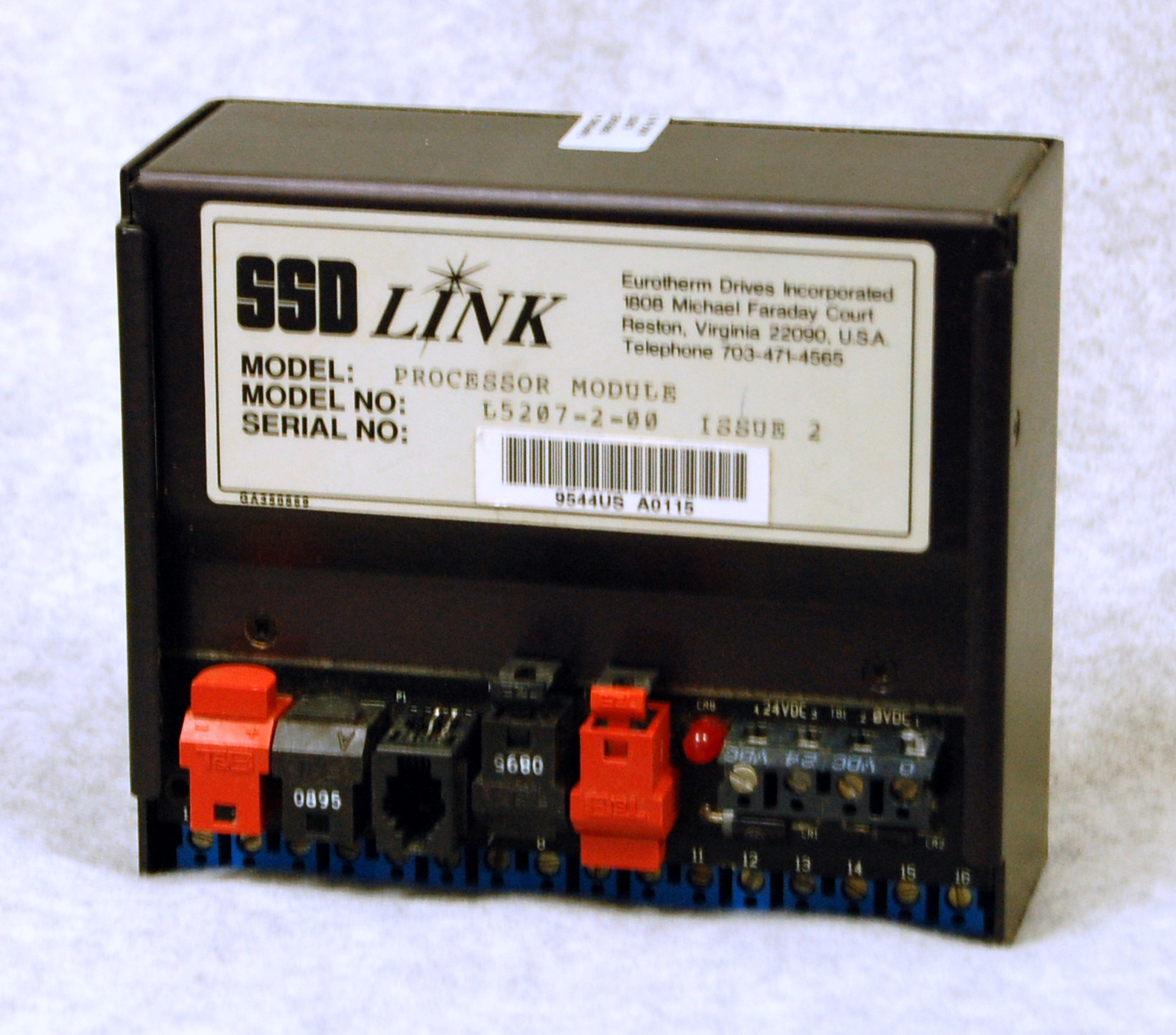

$399.95 CALL TODAY! SSD LINK Processor Module. Information about this module can be found at http://www.valeksrl.com.ar/manuales/ssddrive/variadoresdrive/Software/Link%20Overview%20Manual.pdf Data flows from the main network to the second network via the second set of fiber optic connectors, or secondary channel connectors, on the tapped module. The tapped module is a standard SSD LINK module using both sets of fiber optic connectors. All other SSD LINK modules on both networks use only the primary connectors. If the second SSD LINK network is disconnected from the tap module (either accidentally through a break in the fiber optic cable or on purpose by removing the fiber optic cable from the secondary channel terminals), the main SSD LINK network is automatically maintained if the break occurs in the segment from the second network back to the tapped module. The SSD LINK modules can be programmed to indicate when the second network has been disconnected, which can be useful to allow different functionality when part of the system is disconnected or powered-down. Powering down the tapped module will break both networks, as the tapped module is part of the main ring. However, the second network can be powered down without affecting the main network.
